SEER POWER

SEER POWER generator family: open-frame, sound-attenuated, trailer-mounted, containerized and portable units

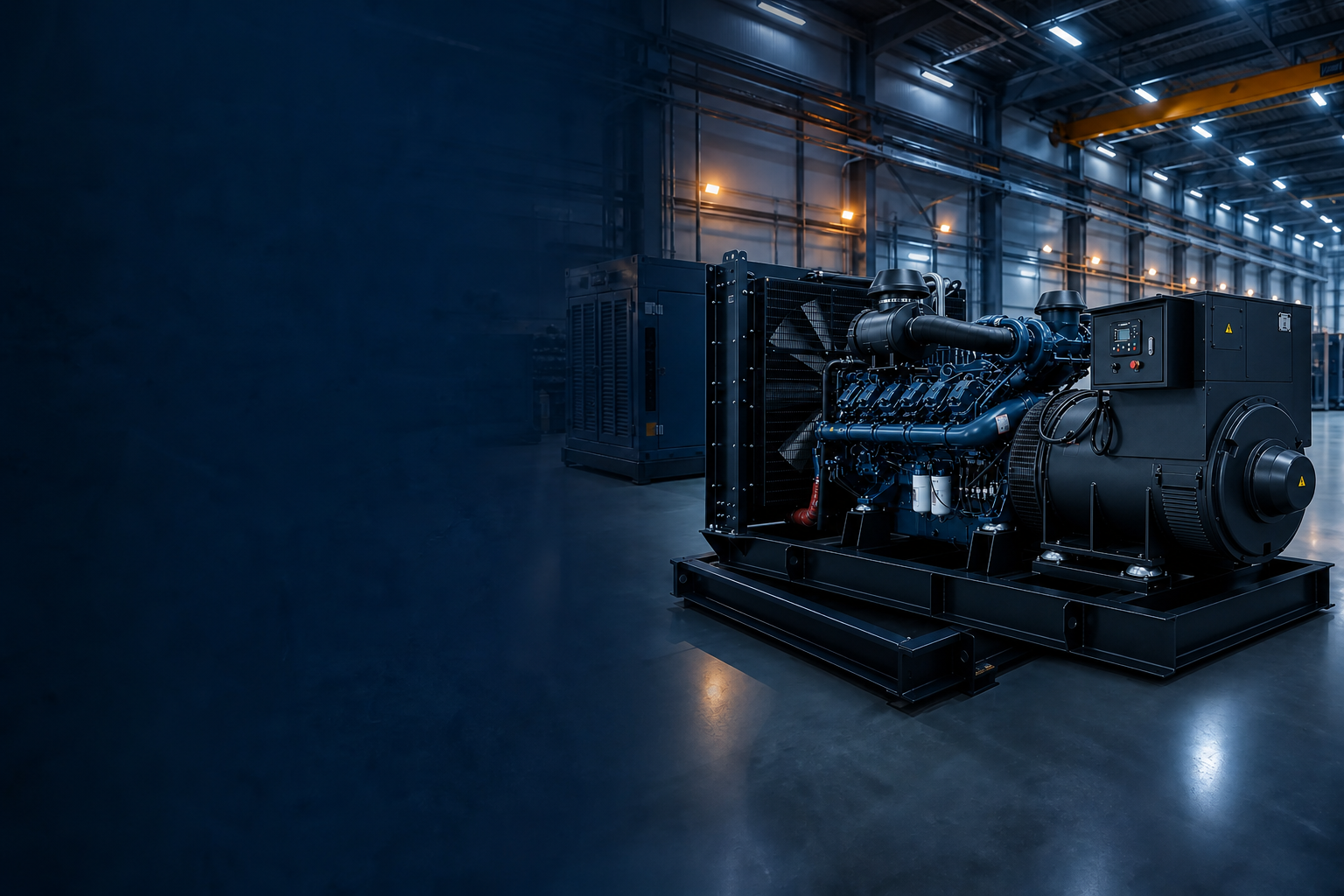

DIESEL & GAS GENERATORS

Engineered Power. Configured to Perform.

Choose diesel or gas power for your site. Explore diesel generators from 30 to 1,875+ kVA and our listed 30–1400 kW gas generator range.

30–1,875+ kVA Diesel power range
Prime & Standby Diesel ratings
50 / 60 Hz Available
Multiple Voltage options
EXPLORE POWER SERIES

DIESEL & GAS

Find the Generator
for Your Project

Choose your fuel, then explore the range and package options.

30–125 kVA24–100 kW30–125 kVA open diesel generator with SEER sound-attenuated enclosure
AVAILABLE CONFIGURATIONS
Open · Sound-Attenuated · Trailer-Mounted
OPERATING RATINGS
Prime · Standby
ELECTRICAL OPTIONS
50 / 60 Hz · Multiple voltages · Single-Phase or Three-Phase
CONFIGURABLE COMPONENTS
Engine · alternator · controller · fuel system · enclosure
View power range & engine brands

Compare All Six Power Series

Series30–125 kVA125–375 kVA375–750 kVA750–1,250 kVA1,250–1,875 kVA1,875+ kVA
kW range24–100100–300300–600600–1,0001,000–1,5001,500+
Available typesOpen · Sound-Attenuated · Trailer-MountedOpen · Sound-Attenuated · Trailer-MountedOpen · Silent · ContainerizedOpen · Silent · ContainerizedOpen · Containerized · Project-SpecificContainerized · Project-Specific
Duty ratingPrime · StandbyPrime · StandbyPrime · StandbyPrime · StandbyPrime · StandbyPrime · Standby
Typical applicationsCommercial · TelecomCommercial buildings · Industrial facilitiesIndustrial · Mining · HospitalsLarge Industrial Facilities · InfrastructureData centers · Mining · Large projectsCritical Infrastructure · Utilities · EPC Projects

QUALITY VERIFIED

Every Set Tested.
Every Detail Verified.

A focused four-step verification process before delivery.

Quality assurance
Factory team reviewing documents at a meeting table
01
Component VerificationChecked against the confirmed configuration.
Factory team reviewing documents at a meeting table

Major components are checked against the confirmed order and configuration before assembly.

Checked against the confirmed configuration.

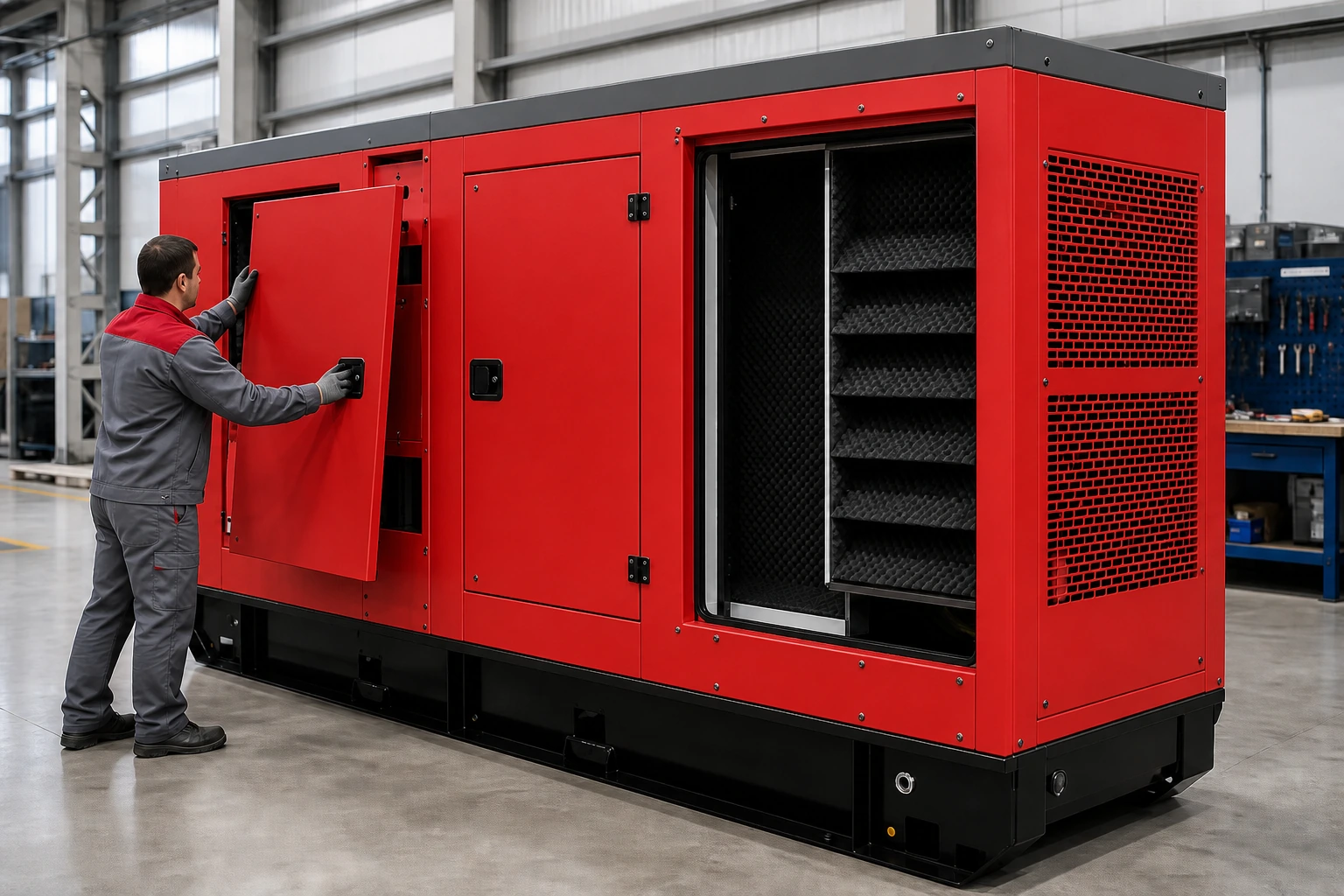

CUSTOM ENCLOSURES

Built to fit.
Quality checked.

Sized and detailed around your generator, site and brand.

Sized for your project

Use space efficiently while allowing for cooling and maintenance.

Easy service access

Doors and openings positioned for routine maintenance.

Your branding

Customer logos applied to the agreed design.

Exploded illustration of a red generator enclosure showing roof panels, frame, doors and ventilation panels 01Dimensions02Connection points03Weld inspection04Coating inspection05Door alignment06Hardware fastening
  1. 01Dimensions
  2. 02Connection points
  3. 03Weld inspection
  4. 04Coating inspection
  5. 05Door alignment
  6. 06Hardware fastening

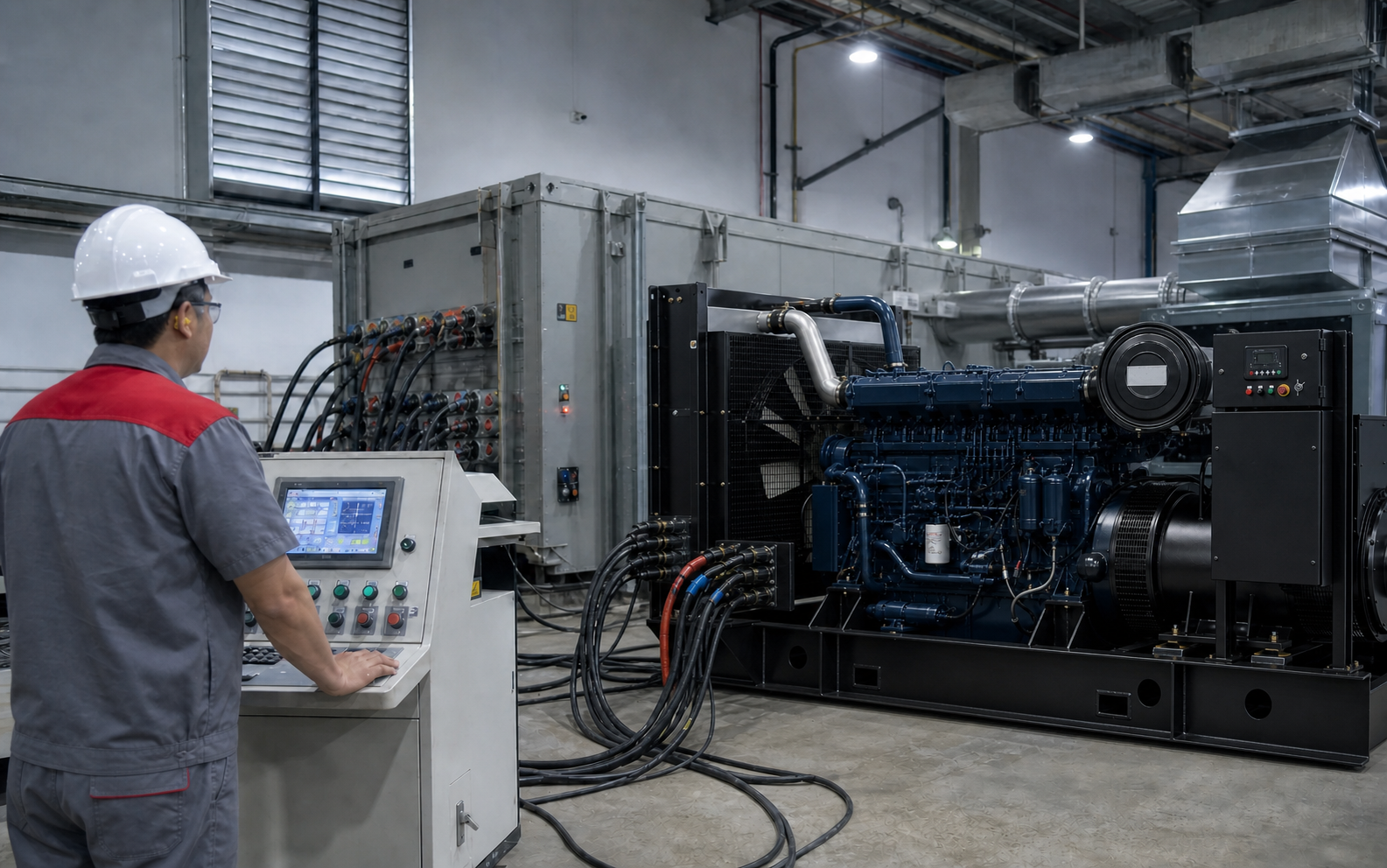

Quality control

  1. Drawing approval
  2. In-process inspection
  3. Final inspection
  4. Test and release

Generator testing and release records

CONTAINER LOADING

Detachable enclosure section.
2 more sets per container.*

On this 100 kW Yuchai-powered generator, the 650 mm module on the right can be dismantled and stowed inside the main enclosure on the left. The engine and alternator stay in place.

100 kW Yuchai-powered generator · 40 ft standard container layout
Assembled2810 × 1080 × 1280 mm
Main body 2160 mm
650 mm
Complete red and black generator enclosure with a detachable module on the right.
Height 1280 mm
Overall length 2810 mm

Overall length 2810 mm: main enclosure on the left 2160 mm + removable module on the right 650 mm. Width 1080 mm; height 1280 mm.

End section removedFor transport: 2160 × 1080 × 1280 mm
Main body 2160 mm
650 mm
Main generator enclosure on the left, with its removable module separated on the right.
Height 1280 mm
Transport length stays at 2160 mm

Once dismantled, the right-hand module fits inside the main enclosure on the left. Transport dimensions: 2160 mm long × 1080 mm wide × 1280 mm high.

Dismantle the module. Ship in less space.

The right-hand module is dismantled and stowed inside the main enclosure on the left.

01Complete generator
02Dismantle the right-hand module
03Stow inside the left-hand enclosure
Schematic cutaway: the engine and alternator stay in the main enclosure on the left. The right-hand module is dismantled and stored in the upper, side and rear interior spaces. Transport length remains 2160 mm.
2810 mmLeft-hand enclosure 2160 mm + right-hand module 650 mm
2160 mmEngine and alternator stay in place
Still 2160 mmStored inside the upper, side and rear spaces
01Complete generator2810 mm
Schematic cutaway: the engine and alternator stay in the main enclosure on the left. The right-hand module is dismantled and stored in the upper, side and rear interior spaces. Transport length remains 2160 mm.

Left-hand enclosure 2160 mm + right-hand module 650 mm

02Dismantle the right-hand module2160 mm
Schematic cutaway: the engine and alternator stay in the main enclosure on the left. The right-hand module is dismantled and stored in the upper, side and rear interior spaces. Transport length remains 2160 mm.

Engine and alternator stay in place

03Stow inside the left-hand enclosureStill 2160 mm
Schematic cutaway: the engine and alternator stay in the main enclosure on the left. The right-hand module is dismantled and stored in the upper, side and rear interior spaces. Transport length remains 2160 mm.

Stored inside the upper, side and rear spaces

Cutaway illustration of the packing principle. Internal layout and securing points require physical confirmation.

Shipping length reduced

650mm
2810 mm 2160 mm

External volume reduced

23.1%
Approx. 3.88 m³ Approx. 2.99 m³

Based on external dimensions, excluding packaging; width and height are unchanged.

One 40 ft container: 10 sets instead of 8.*

Same container · single layer · same orientation*

Assembled shipping8sets / container*
Inside length 12032 mmInside width 2352 mm
4 rows × 2 setsGenerator length 2810 mm
Compact shipping10sets / container*
Inside length 12032 mmInside width 2352 mm
5 rows × 2 sets2 more sets · 25% more per container

Top view · same container dimensions and scale

* 8 and 10 sets are layout calculations using the stated external dimensions, not verified loads or maximum capacities. Packaging, securing, handling clearance and payload must be checked.

External volume reduction does not equal freight cost savings. The cutaway is schematic; photo dimensions follow the stated measurements, not image scale.

40 ft standard container reference: inside 12032 × 2352 × 2395 mm; door opening 2340 × 2292 mm. Actual container specifications apply. Container specifications

CONFIGURABLE AROUND YOUR NEEDS

One Platform.
Multiple Configurations.

We provide a wide range of options to match your project requirements and site conditions.

Diesel engine brands iconEngine Brands

Cummins · Perkins · Volvo Penta · Weichai · mtu

Generator alternator brands iconAlternators

Stamford · Leroy-Somer · Marathon · Mecc Alte

Generator control systems iconControl Systems

Deep Sea Electronics (DSE) · ComAp · SmartGen · DEIF

Generator enclosure types iconEnclosure Types

Open · Silent · Containerized · Trailer-mounted

Generator fuel systems iconFuel Systems

Base tank · Day tank · External tank

Generator voltage options iconVoltage Options

380V · 400V · 415V · 440V · 690V

Generator cooling systems iconCooling Systems

Engine-Mounted Radiator · Remote Radiator · High-Ambient Cooling

Generator paralleling systems iconParalleling Systems

Automatic Synchronization · Load Sharing

Generator accessories iconAccessories

ATS · PMG · Space heater · Battery charger

Compliance and documentation iconCompliance & Documentation

ISO 9001 · ISO 14001 · ISO 45001 · CE
